Description
BENEFITS:
- PROVIDES HIGHLY EFFECTIVE REMOVAL OF ULTRA-FINE PARTICLES
- EACH MASSIVE FILTER ELEMENT HOLDS UP TO ONE (1) POUND OF CONTAMINATION
- 64 OZ WATER SEPARATOR IN EACH F-1*
- DELIVERS 99.9% MOISTURE FREE FUEL
- MARINE ELECTRICAL BOX WITH 12 HOUR TIMER AND WATER DETECTION ALARM
- STAINLESS STEEL LIQUID-FILLED VACUUM GAUGE
- ALL U.S. STEEL FILTER HOUSING, NO GASKET REPLACEMENT
- NO TOOLS REQUIRED TO SERVICE
- S.C.G. ACCEPTED
APPLICATIONS:
- 1000+ GALLONS DIESEL FUEL
- ON BOARD FUEL TANK POLISHING
- LOCATION SPECIFIC FUEL POLISHING
SPECIFICATIONS:

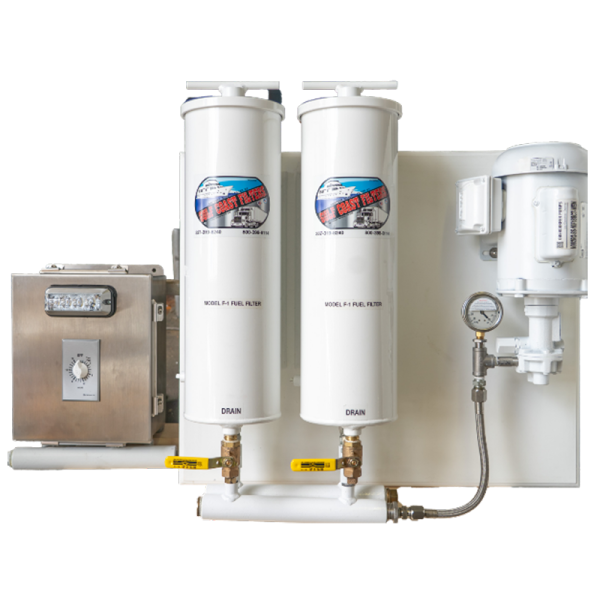

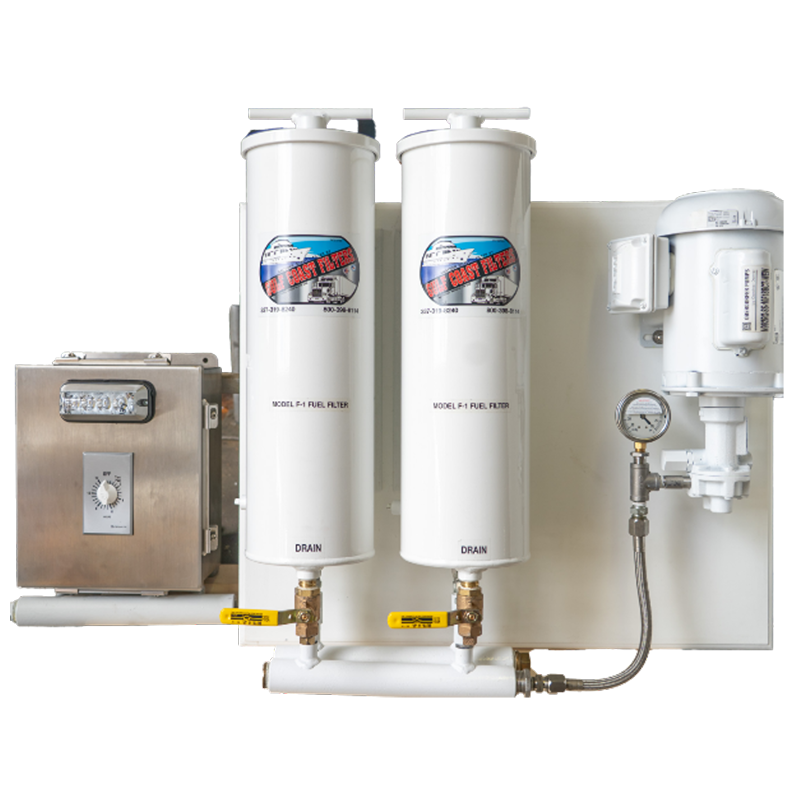

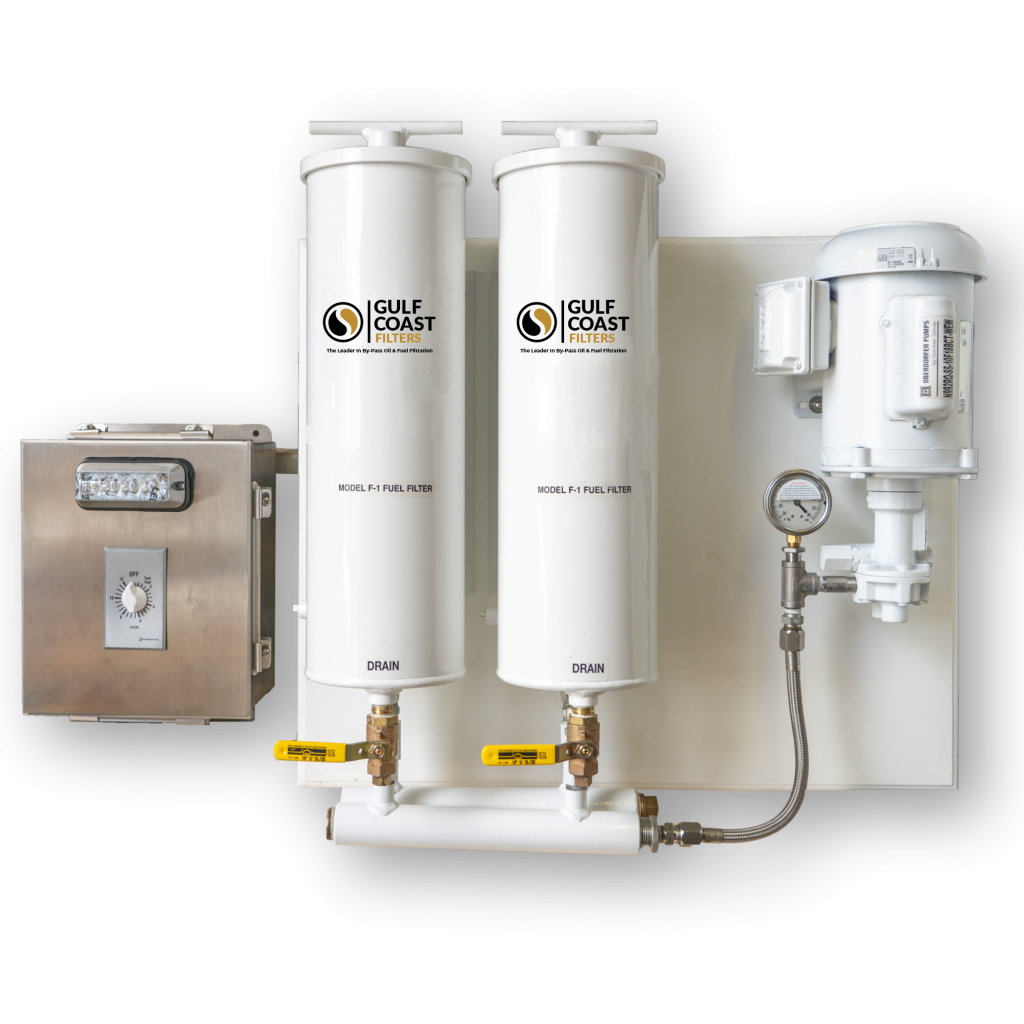

- * 2 EA. GCF MODEL F-1 FUEL FILTER/WATER SEPARATORS
- OBERDORFER BRONZE GEAR PUMP BUILT TO GCF SPECIFICATIONS
- MOUNTED ON 3/4” MARINE ACRYLIC WHITE BOARD
- SYSTEM RATING: 240 GPH
- MAXIMUM OPERATING PRESSURE: 80 PSI
- MAXIMUM FLOW RATE: 0 GPM
- INLET/OUTLET CONNECTION: 3/8” NPT
- BOTTOM DRAIN: 1/2” NPT BALL VALVE
- DIMENSIONS: (H) 27.00” (W) 40.00” (D) 10.00”
- WEIGHT: 175 LBS
